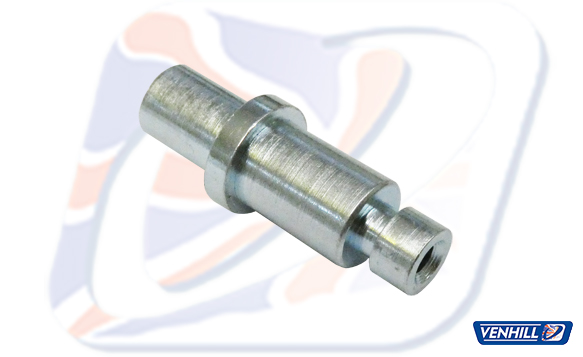

10.00mm O.D. SHOULDERED FERRULE FOR LB4
SKU:
RB10M21G/A
£2.66
£2.22
Availability
In Stock
10.00mm O.D. x 14.00mm LONG NOSE. 13.00mm O.D. SHOULDER x 3.00mm WIDE. 5.50mm O.D. GROOVE x 2.50mm WIDE, POSITIONED 4.50mm IN FROM THE NOSE OF FERRULE AND USED TO HOLD M5937 RUBBER BOOT. BODY O.D. 9.00mm x 36.00mm TOTAL LENGTH. 8.10mm I.D. x 12.00mm DEPTH, SUITABLE FOR 8.00mm CONDUIT. 3.20mm DIAMETER THROUGH HOLE AND SUITABLE FOR WIRE UP TO 2.50mm. BRIGHT ZINC & CLEAR PLATED MILD STEEL.
Details
This ferrule can be fixed to LB4 conduit with a mechanical crimp such as a centre punch, vice compression, or built-for-purpose tooling. At Venhill, we crimp the 9mm O.D. body of this ferrule with a hexagonal jaw press measuring 8.00mm across flats. This provides a superbly strong connection between the ferrule and the conduit.
