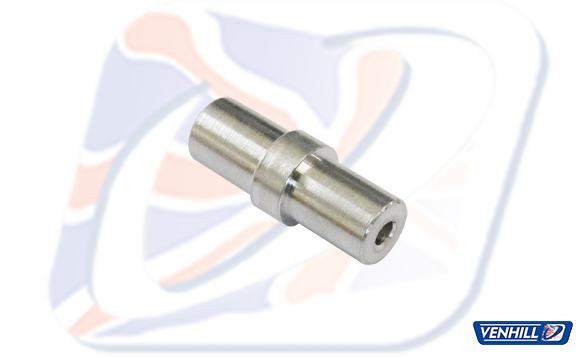

7.50mm O.D. SHOULDERED FERRULE FOR LB2
SKU:
FY014
£1.30
£1.08
Availability
In Stock
7.50mm O.D. x 10.00mm LONG NOSE. 9.50mm O.D. SHOULDER x 4.00mm WIDE. BODY O.D. 8.00mm x 24.00mm TOTAL LENGTH. 6.35mm I.D. x 13.60mm DEPTH, SUITABLE FOR 6.00mm CONDUIT. 2.80mm DIAMETER THROUGH HOLE AND SUITABLE FOR WIRE UP TO 2.00mm. ALUMINIUM.
Details
This ferrule can be fixed to LB2 conduit with a mechanical crimp such as a centre punch, vice compression, or built-for-purpose tooling. At Venhill, we crimp the 8mm O.D. body of this ferrule with a hexagonal jaw press measuring 7.00mm across flats. This provides a superbly strong connection between the ferrule and the conduit.
