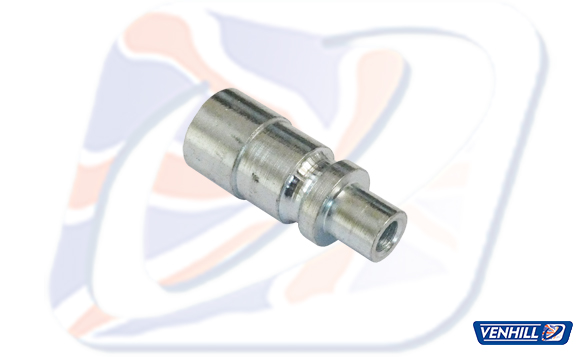

9.00mm O.D. GROOVED FERRULE FOR LB2
SKU:
FR166G
£1.66
£1.38
Availability
In Stock
9.00mm O.D. x 11.00mm LONG,STEPPING DOWN TO A 6.00mm O.D. x 6.00mm LONG NOSE. 7.00mm O.D. O-RING GROOVE x 2.50mm WIDE, POSITIONED 8.00mm IN FROM THE NOSE OF FERRULE. BODY O.D. 10.00mm x 24.00mm TOTAL LENGTH. 6.10mm I.D. x 13.50mm DEPTH, SUITABLE FOR 6.00mm CONDUIT. 3.50mm DIAMETER THROUGH HOLE AND SUITABLE FOR WIRE UP TO 2.00mm. ZINC & CLEAR PLATED MILD STEEL.
Details
This ferrule can be fixed to LB2 conduit with a mechanical crimp such as a centre punch, vice compression, or built-for-purpose tooling. At Venhill, we crimp the 10mm O.D. body of this ferrule with a hexagonal jaw press measuring 9.25mm across flats. This provides a superbly strong connection between the ferrule and the conduit.
